Introduction

Microsoft Excel is known for its powerful data analysis and visualization features, but one tool stands out because of its ability to instantly highlight insights: Excel Conditional Formatting. From tracking sales performance to identifying overdue payments, Conditional Formatting makes complex data look simple, visual, and easy to understand. It automates color coding, data bars, icon sets, heat maps, and advanced rule-based formatting to transform static spreadsheets into dynamic dashboards.

In this ultimate guide on Excel Conditional Formatting, we will explore everything from basic concepts to advanced custom formulas:

• Basic rules
• Top/Bottom rules
• Data bars
• Heat maps
• Icon sets
• Advanced formulas
• Business use cases
• Dashboard building techniques

What is Conditional Formatting in Excel?

Conditional Formatting in Excel is a feature that automatically formats cells (colors, icons, styles) based on specific rules or conditions. When the rule matches the cell value, Excel applies the formatting instantly.

Example Explained:

• Highlight all values greater than 50
• Color low sales in red
• Apply a green icon to top-performing employees
• Use a formula to identify duplicate values

Conditional Formatting helps users:

✔ Improve data readability
✔ Make patterns and trends visible
✔ Highlight exceptions and errors
✔ Create professional Excel dashboards

Where is Conditional Formatting Located?

You can find the Conditional Formatting tool at:

Home → Conditional Formatting

In this menu, you will see multiple options:

• Highlight Cells Rules
• Top/Bottom Rules
• Data Bars
• Color Scales
• Icon Sets
• New Rule
• Manage Rules

Types of Conditional Formatting in Excel

This guide covers the complete list of tools available in conditional formatting, including both basic and advanced methods.

✓ 1. Highlight Cells Rules

This is the beginner-friendly method. It includes:

• Greater Than
• Less Than
• Between
• Equal To
• Text That Contains
• A Date Occurring
• Duplicate Values

Example: Highlight sales above ₹50,000

1. Select the sales column
2. Click Conditional Formatting → Highlight Cells Rules → Greater Than
3. Enter 50000
4. Choose a color (green)

Now, every sale above 50,000 is highlighted.

Best Use Cases

✔ Sales performance
✔ Exam scores
✔ Employee productivity
✔ Target achievement

✓ 2. Top/Bottom Rules

This option highlights:

• Top 10 Items
• Bottom 10 Items
• Top 10%
• Bottom 10%
• Above Average
• Below Average

Example: Highlight the top 5 Students

1. Select data
2. Go to: Conditional Formatting → Top/Bottom Rules → Top 10 Items
3. Change 10 to 5

Best Use Cases

✔ Performance ranking
✔ Leaderboard creation
✔ KPI highlights

✓ 3. Data Bars

Data bars add horizontal bars directly inside the cells to visually represent values.

Types include:

• Gradient fill
• Solid fill

Example: Visualize monthly revenue

1. Select revenue data
2. Click Conditional Formatting → Data Bars

This instantly creates a bar-style visualization.

Benefits

✔ Easy to compare values
✔ Looks like a mini-chart
✔ Useful for dashboard reports

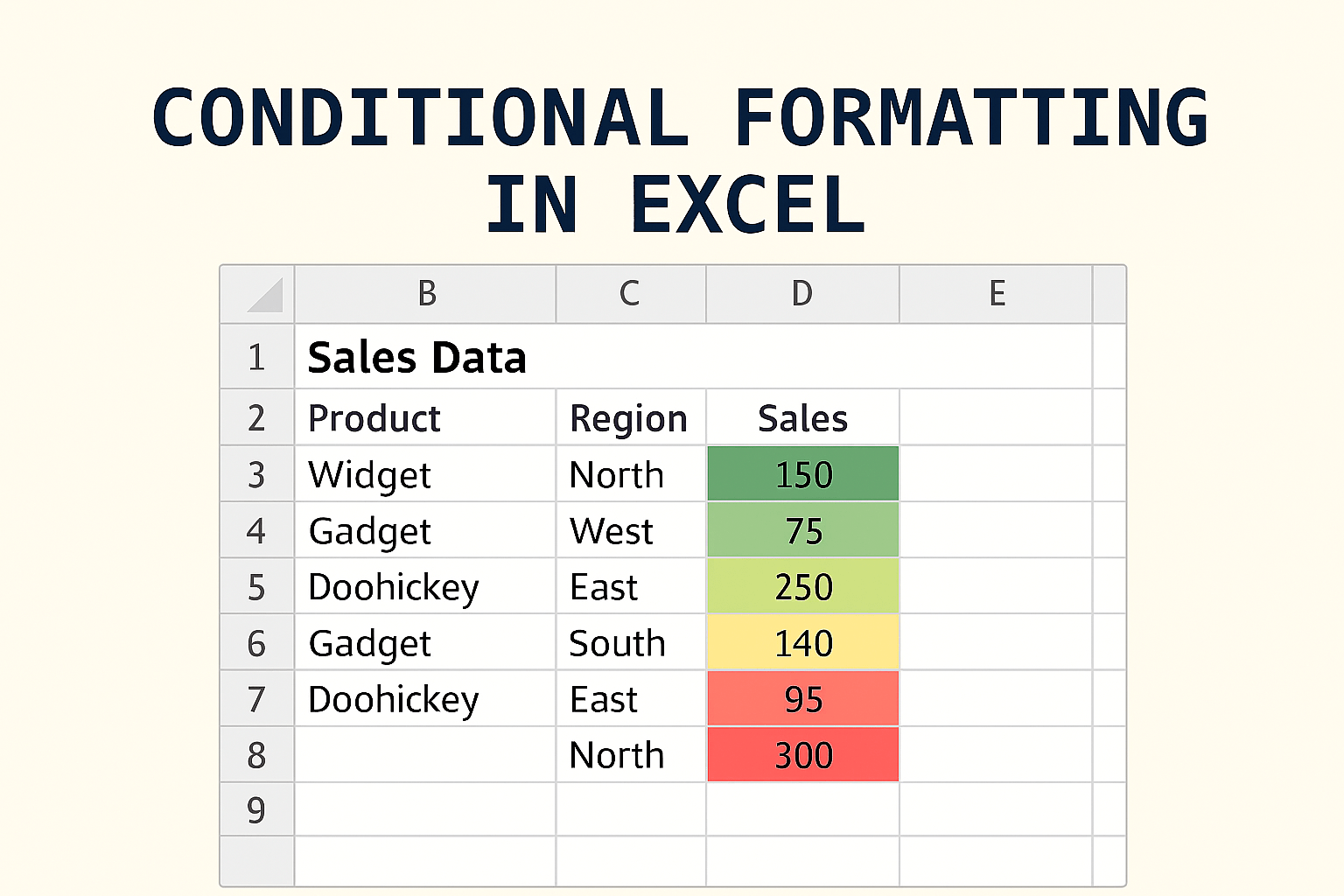

✓ 4. Color Scales (Heat Maps)

Color scales apply gradient color formatting based on value intensity.

Common examples:

• Red to green scale
• Yellow to red scale
• Blue to white scale

Example: Heat map of student marks

1. Select marks
2. Go to Conditional Formatting → Color Scales → Green-Yellow-Red

High values show green, low values show red.

Ideal For

✔ Financial statements
✔ Temperature tracking
✔ Analytics dashboards
✔ Stock price movements

✓ 5. Icon Sets

Icon sets add symbols based on values, including:

• Arrows (up, down, sideways)
• Traffic lights
• Flags
• Stars
• Check marks
• Shapes

Example: Marketing campaign performance

• Green upward arrow → high leads
• Yellow sideways arrow → average leads
• Red downward arrow → low leads

Best Use Cases

✔ Management reports
✔ KPI indicator dashboards
✔ Company growth and trend analysis

Advanced Conditional Formatting Tools

The real power of Conditional Formatting begins with advanced features and formulas.

✓ 6. Manage Rules

This option lets you:

• Edit conditional formatting
• Delete rules
• Apply priority
• Apply rules to selected ranges

✓ 7. New Rule

You can create custom rules using:

• Formulas
• Cell references
• Mathematical logic

This opens the door to professional spreadsheet automation.

Using Formulas in Conditional Formatting (Most Important Section)

Formulas make conditional formatting powerful.

You can use formulas like:

• IF
• AND
• OR
• COUNTIF
• ISBLANK
• SEARCH
• EXACT

Formula Example 1 — Highlight duplicates in a list

=COUNTIF($A:$A,A1)>1

✔ Highlights values that appear more than once.

Formula Example 2 — Highlight weekends

=OR(WEEKDAY(A1)=1,WEEKDAY(A1)=7)

✔ Useful for attendance or timesheet data.

Formula Example 3 — Highlight rows based on a condition

=$C1>50000

✔ Highlights complete rows where sales > 50,000.

Formula Example 4 — Highlight overdue dates

=A1<TODAY()

✔ Excellent for invoice tracking, payment reminders, project deadlines.

Formula Example 5 — Highlight blank cells

=ISBLANK(A1)

✔ Useful for report completeness.

Best Practical Use Cases of Conditional Formatting

✔ Business

• Track product performance
• Compare revenue vs target
• Identify low stock levels

✔ Finance

• Gain/loss indicators
• Budget variance
• Expense thresholds

✔ HR

• Leave tracking
• Employee appraisal ranking
• Attendance monitoring

✔ Education

• Exam scoring patterns
• Assignment submission tracking
• Student performance heat map

✔ Digital Marketing

• Campaign ROI
• CTR performance
• Conversion tracking dashboards

Conditional Formatting Shortcut Keys

Task	Shortcut
Open Conditional Formatting Menu	ALT + H + L
Create New Rule	ALT + H + L + N
Manage Rules	ALT + H + L + M

Common Mistakes and How to Fix Them

❌ Mistake 1 — Selecting wrong range

Fix: Always select the entire data before applying the rule.

❌ Mistake 2 — Rules overlapping

Fix: Use Manage Rules to prioritize.

❌ Mistake 3 — Formatting not updating

Fix: Use Apply to Range to update references.

Advanced Conditional Formatting Tips (Pro Level)

✔ Use Absolute References ($A$1)

To apply rules to multiple rows.

✔ Use Formula + Color Scale

To show top 10 performers visually.

✔ Combine Conditional Formatting + Data Validation

For interactive dashboards.

✔ Use Conditional Formatting for charts

Yes, you can highlight chart data using rules.

Creating a Professional Business Dashboard Using Conditional Formatting

Here is a recommended dashboard layout:

Section	Formatting Type
KPI metrics	Icon sets
Monthly revenue	Data bars
Region performance	Color scale
Target achievement	Top/Bottom rules
Risk alerts	Red highlight formula

This creates a management-ready dashboard in Excel without VBA or Power BI.

Conclusion

Conditional Formatting is more than just a visual highlighting tool. It is a powerful analytical system inside Excel that makes data meaningful and useful. Whether you are a beginner learning highlight rules, or an advanced analyst using formulas to automate reports, Conditional Formatting can transform how you present and understand data.
